General Lab Issues

Error while deploying CSR 1000v directly on ESXi

A Required Disk Image Was Missing

$ ovftool --name="CSR1"  --acceptAllEulas -ds="datastore1" --net:"GigabitEthernet1"="VM Network"  --net:"GigabitEthernet2"="VM Network" --net:"GigabitEthernet3"="VM Network"  /filepath/csr1000v-universalk9.16.03.06\ \(1\)\ copy.ova vi://192.168.1.13/
Opening OVA source: /filepath/Downloads/csr1000v-universalk9.16.03.06 (1) copy.ova
The manifest validates
Enter login information for target vi://192.168.1.13/
Username: root
Password: *********
Opening VI target: vi://root@192.168.1.13:443/
Deploying to VI: vi://root@192.168.1.13:443/
Disk progress: 4%

ovftool --name="KISE"  --acceptAllEulas -ds="datastore1" --net:"GigabitEthernet1"="VM Network"  --net:"GigabitEthernet2"="VM Network" --net:"GigabitEthernet3"="VM Network"  /filepath/csr1000v-universalk9.16.03.06\ \(1\)\ copy.ova vi://192.168.1.13/

Opening OVA source: /filepath/Downloads/csr1000v-universalk9.16.03.06 (1) copy.ova
The manifest validates
Enter login information for target vi://192.168.1.13/
Username: root
Password: *********
Opening VI target: vi://root@192.168.1.13:443/
Deploying to VI: vi://root@192.168.1.13:443/
Disk progress: 4%

./ovftool --noSSLVerify \
        --name="KISE"  \
        --acceptAllEulas \
        -ds="datastore1" \
        --diskMode=thick \
        --network="VM Network"  \
        /Users/vikassri/Downloads/ISE-2.1.0.474-mini.ova \
        vi://192.168.1.13/

./ovftool --noSSLVerify \
          --name="KISE"  \
          --acceptAllEulas \
          -ds="datastore1" \
          --diskMode=thin \
          --network="VM Network"  \
          /Users/vikassri/Downloads/Cisco_Firepower_Management_Center_Virtual_VMware-6.2.3-83/Cisco_Firepower_Management_Center_Virtual_VMware-ESXi-6.2.3-83.ovf \
          vi://192.168.1.13/



qemu-img convert -c -O qcow2 /opt/unetlab/tmp/0/c06281a8-161c-4aa5-aea4-4d304b13b6d4/1/megasasa.qcow2 /opt/unetlab/addons/qemu/vwlc-8.7.102/megasasa.qcow2


qemu-img convert -c -O qcow2 /opt/unetlab/tmp/0/c06281a8-161c-4aa5-aea4-4d304b13b6d4/1/virtioa.qcow2  /opt/unetlab/addons/qemu/win-7test/virtioa.qcow2
Ovftool with thin provision

./ovftool –acceptAllEulas -dm=thin -ds=”datastore1” –net:”External”=”VM Network” –net:”Internal”=”VM Network” –net:”Management”=”VM Network” Cisco_Firepower_NGIPSv_VMware-ESXi-6.2.0-362.ovf vi://192.168.1.13/

Downloading from Datastore to local machine

wget –no-check-certificate –http-user=root –http-password=**** ‘https://192.168.1.13/folder/OS_ISOs/W10X64.1709.ENU.DEC2017.iso?dcPath=ha%2ddatacenter&dsName=datastore1’ -O Windows.iso

ESXi

https://talesfromthedatacenter.com/2016/02/esxi-6-install-stuck-on-relocating-modules-and-starting-up-the-kernel/

Re-arranging iTerm

Thanks to http://azaleasays.com/2014/03/05/iterm2-merge-a-pane-back-to-window-or-tab-bar/

The secret key combination to drag a pane back to a window or to the tab bar is: command + shift + option, while dragging the pane body (not its header!). View the screencast below and you’ll figure it out:

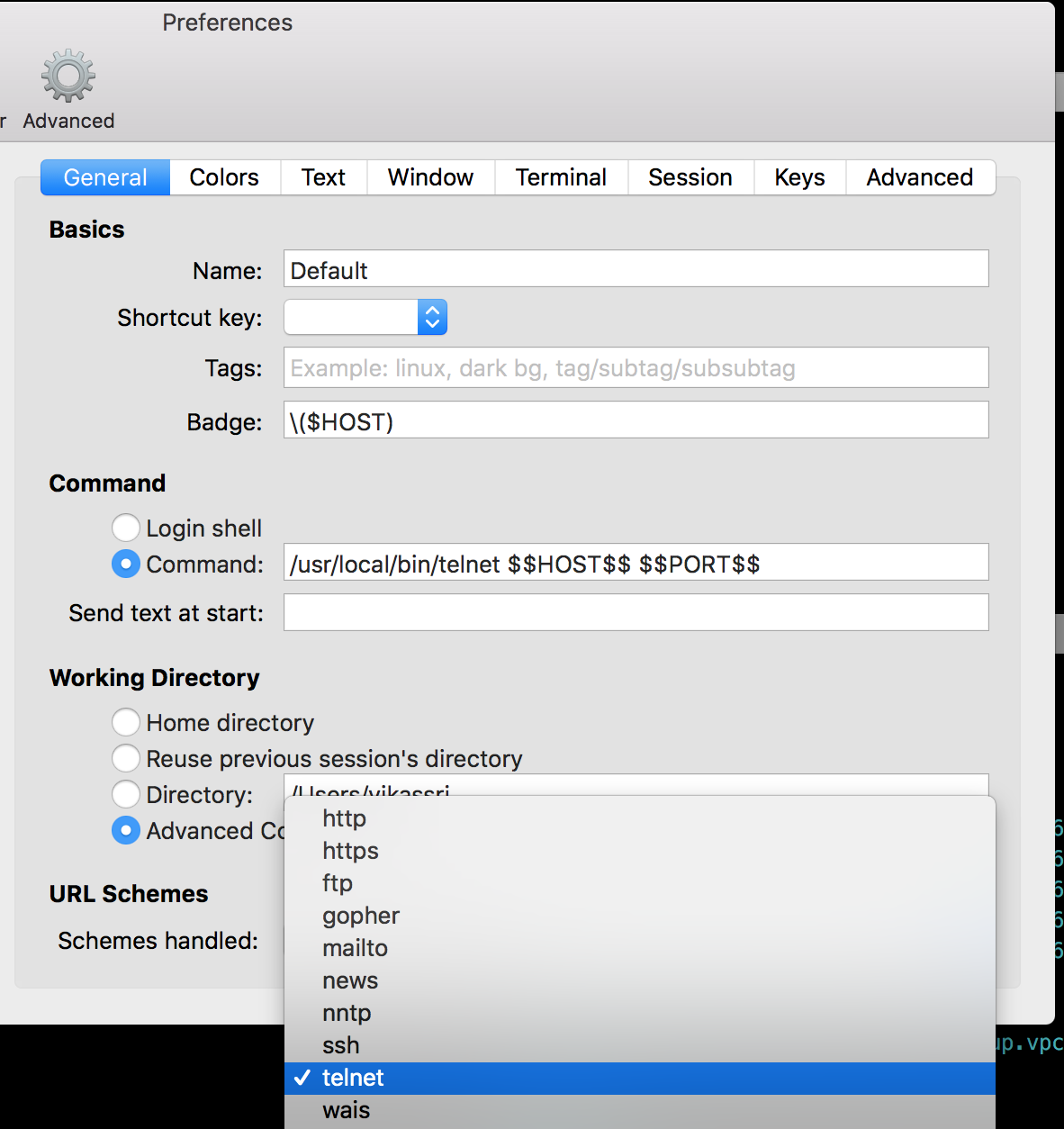

Having iTerm handle the telnet:// URL

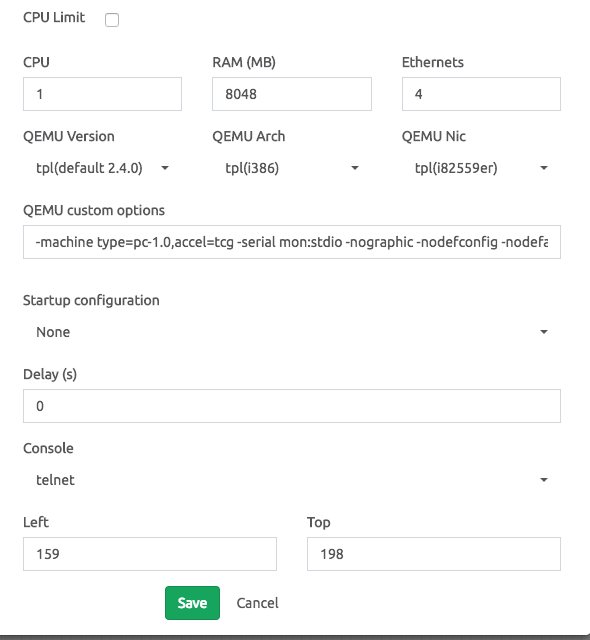

ASA in Eve-NG

Java Issues

On MAC Look for JavaAppletPlugin.plugin , Open in Atom and In tree view do the following: Comment “jdk.jar.disabledAlgorithms” in the file of”lib/security/java.security”

Adding Capability to Upgrade in EVE VM

root@vagrant-eve:~# cat /etc/apt/sources.list | grep eve deb [arch=amd64] http://www.eve-ng.net/repo xenial main

deb-src [arch=amd64] http://www.eve-ng.net/repo xenial main

Delete or comment the refrence to eve repo .

X Window Forwarding ssh -Y vikassri@192.168.1.195

TMUX Integration with iTerm

tmux should be installed in the remote machine where we are sshing to. Once Connected to the remote machine

tmux -CC to start the tmux session

Cmnd + n for New window Cmnd + Shift + Option To rearragne the windows Esc to dettach in the main window tmux -CC attach to attach back the same arrangment.

EVE Issues

/opt/unetlab/wrappers/unl_wrapper -a stopall then run again apt update apt install –reinstall eve-ng-pro
